i-Max Book Stitching Machine SH16 / DH-12 / DM-25 / DM-32

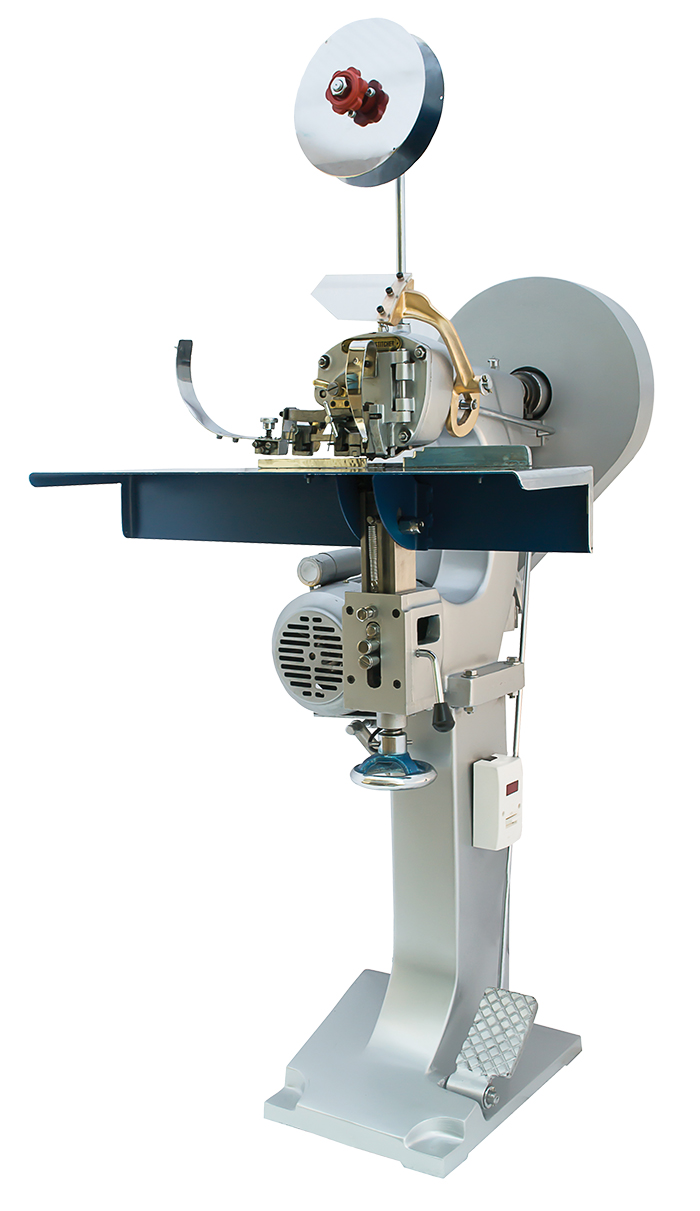

SH16 – Single Head

Thickness 16mm
Technical Specifications
Stitching Capacity: 0.1mm to 16mm
Stitching Speed: 180 Stitches per minute
Motor: ½ H.P. Single phase
Wire: 26 S.W.G. to 20 S.W.G.
Weight Net: 150kg
Gross: 250 kgs
Machine: L32” W28” H54”
Packing box size: 52” x 33” x 32”

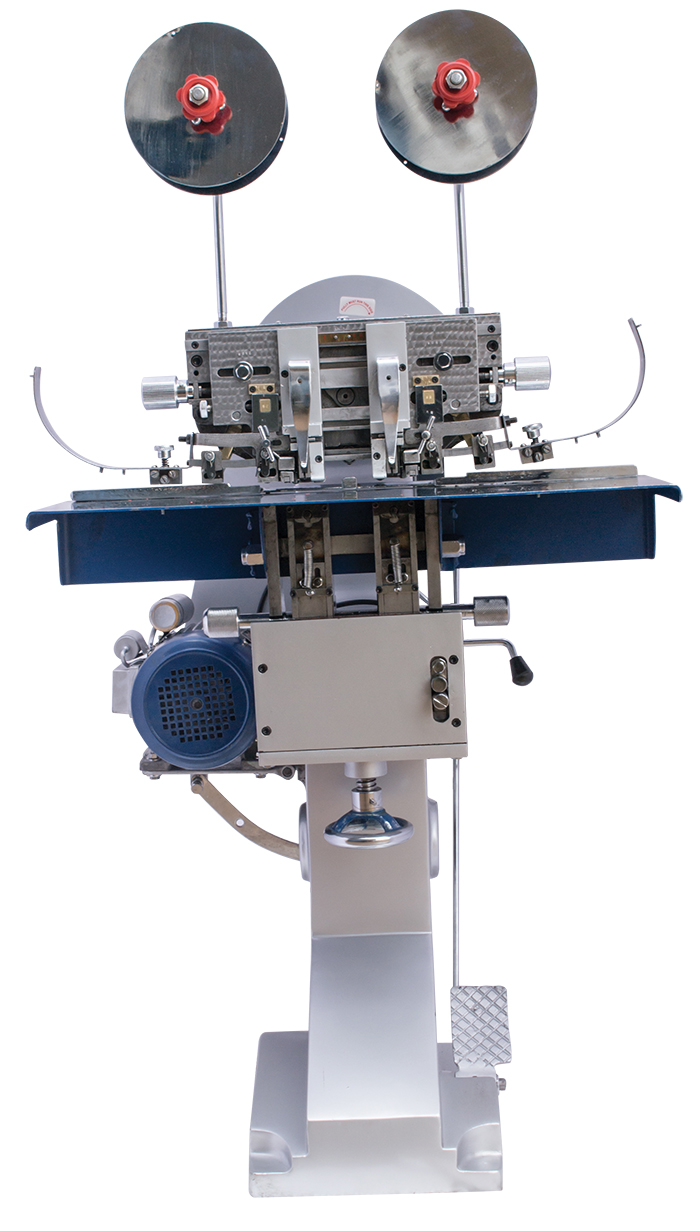

DH12 - Double Head

Thickness 12mm
Technical Specifications
Stitching Capacity: 0.1mm to 12mm
Stitching Speed: 150 x 2 Stitches per minute
Motor: 1H.P. Single phase
Wire: 24 S.W.G. to 20 S.W.G.
Weight Net: 225kgs
Gross: 350kgs
Machine Size: L32” W28” H54”
Packing box size: 52” x 33” x 32”
Gap can be adjusted: 50mm to 112mm

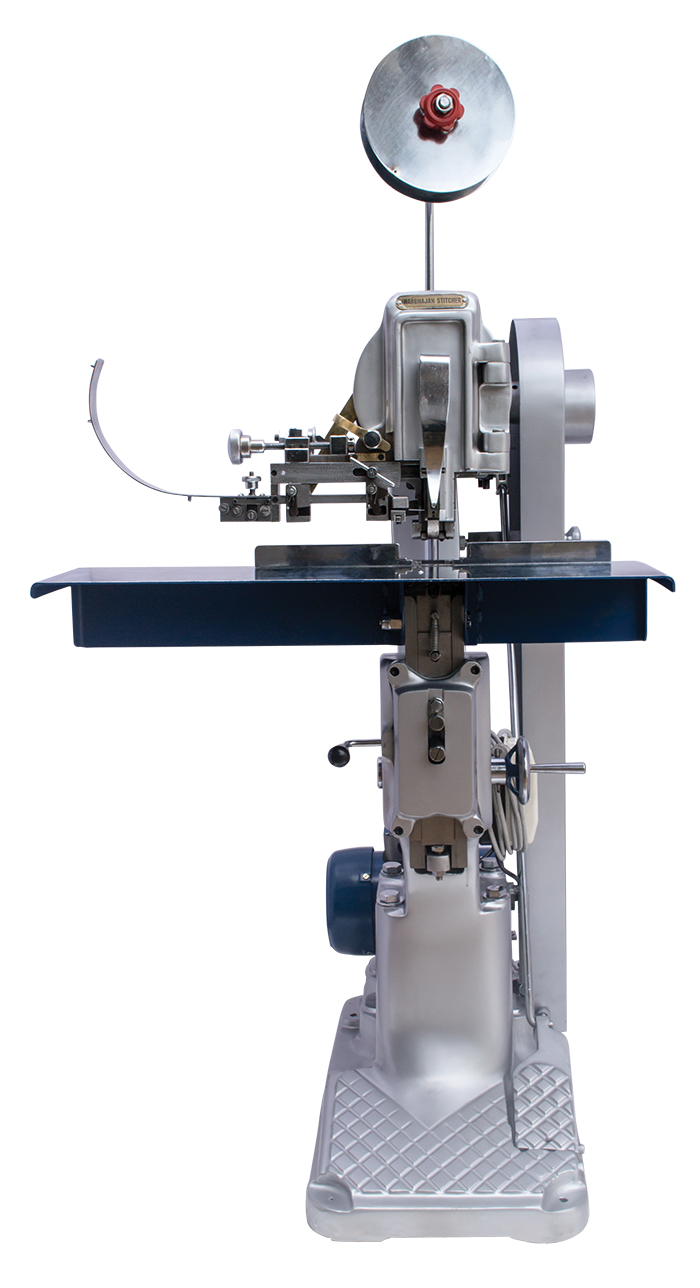

DM-25 / DM-32

Thickness 25mm & 32mm
Technical Specifications
Stitching Capacity: 0.1mm to 25mm
0.1mm to 32mm
Stitching Speed: 150 Stitches per minute
Motor: 1H.P. Single phase
Wire: 24 S.W.G. to 20 S.W.G. (for 25mm)
24 S.W.G. to 18 S.W.G. (for 32mm)
Weight Net: 200kgs
Gross: 350kgs
Machine Size: L30” W30” H57”
Packing box size: 53” x 31” x 27”
